Key Features

|
Frequency |
Quad-band 850/900/1800/1900MHz, 4G is optional. |
|
Digital Output |
NC/NO dry contact, 3A/240VAC |
|
DC Power supply |
9~24VDC/2A |
|
Power consumption |
12V input Max. 50mA/Average 25mA |
|
SIM Card |
Support 3V SIM Card |
|
Antenna |
50Ω SMA Antenna interface |
|
Temperature range |
-20~+60 °C |
|
Humidity range |
Relative humidity 90% |
|
Exterior dimension |
W90mm*D70mm*H27mm |
|
Net Weight |
180 g |
|
Relay Switch,Gate Opener(RTU5024/RTU5034/RTU5025) |
|||||||||
|
Model |
Digital Input |
Relay Output |
Function |
||||||
|
RTU5024 |
X |
1 |
1.200 authorized phone numbers can be configured at the specified time; |
||||||
|

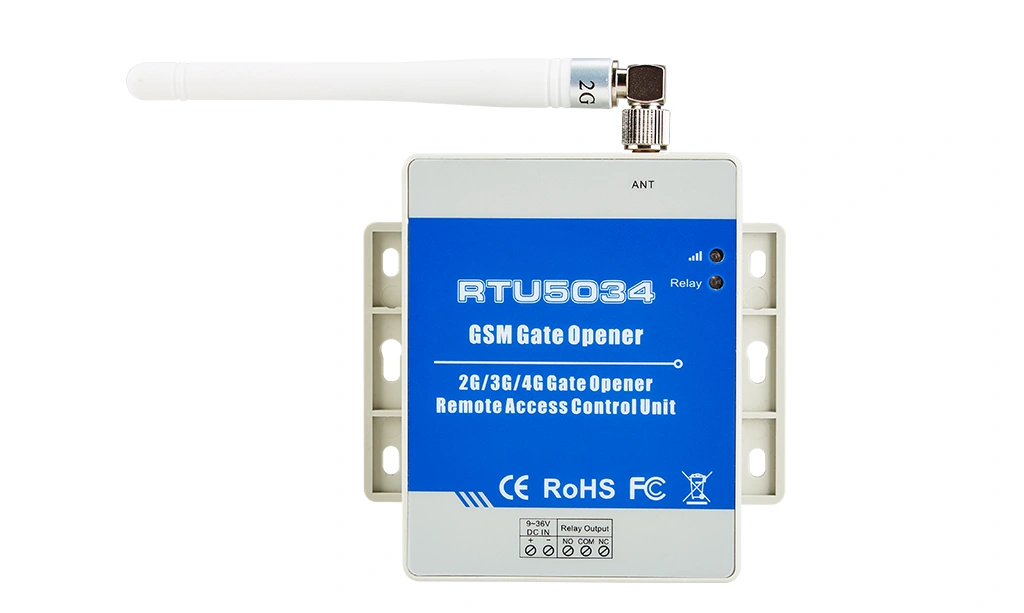

RTU5034 |
X |
1 |
Same function as RTU5024, the difference is that RTU5024 is metal case and RTU5034 is plastic case. |
||||||
|
RTU5025 |
2 |
1 |
1.3000 authorized phone numbers can be configured at the specified time; |
||||||
